Wireless charger, USB to type-C charge cable, operating instructions

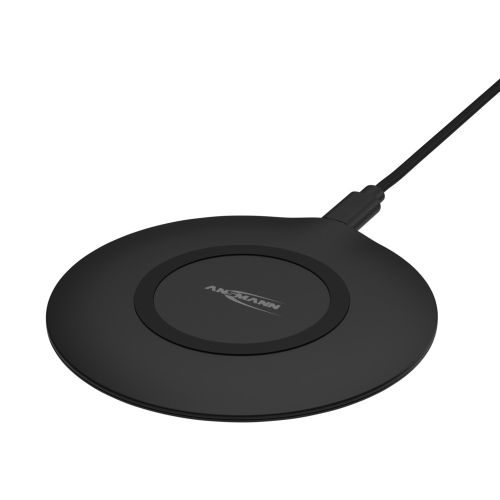

WiLine 15R
Wireless charger, compatible with all Qi-capable smartphones and Qi receivers
| Part number | 1001-0126 |
|---|---|
| EAN code | 4013674184897 |
| Product content | Wireless charger, USB to type-C charge cable, operating instructions |
| Product weight | 0.077 kg |
| Dimensions | 10 × 10 × 0.8 cm |
| Warranty | 3 years |
Inductive charger with an integrated LED display
The WiLine 15R is a compact, wireless charger with an integrated LED display. The LED lights up blue during the charging process. It flashes red when an error or foreign object is detected. It lights up red in standby mode.
The charging efficiency is 75,0 %.
Sophisticated design
The WiLine 15R is one of the slimmest wireless chargers with a thickness of just 5 mm. Thanks to the passive cooling concept, it remains in the green range even at the highest performance. Non-slip rubber feet ensure it stands securely on smooth surfaces. The rubberised mounting ring holds your smartphone securely in place.
Includes USB type C a USB cable
The WiLine 15R is supplied with a USB type C cable. This allows the charger to be used on any USB power supply.
Compatible with all Qi-capable smartphones/Qi receivers
The WiLine 15R is compatible with all Qi-capable smartphones and Qi receivers, which means that it is suitable for universal use.
| Input voltage | 5 - 12V DC |
|---|---|
| Max. input current | 2 A |
| Port | USB type C |
| Output voltage | 5 - 9V DC |
| Max. output current | 1,67 A |
| Maximum power | 15 W |
| Functions | Foreign object detection, Overcurrent protection, Overvoltage protection, Temperature control |
| Average operational efficiency | 75,0 % |
| Color | black |
| Storage temperature | -20 - 70 °C |
| Operating temperature | -10 - 60 °C |
Charging currents
| Mode | Voltage | Current | Power |
|---|---|---|---|
| 5W | 5,0 V | 1,0 A | 5,0 W |
| 10W | 9,0 V | 1,1 A | 10,0 W |
| 15W | 9,0 V | 1,7 A | 15,0 W |
