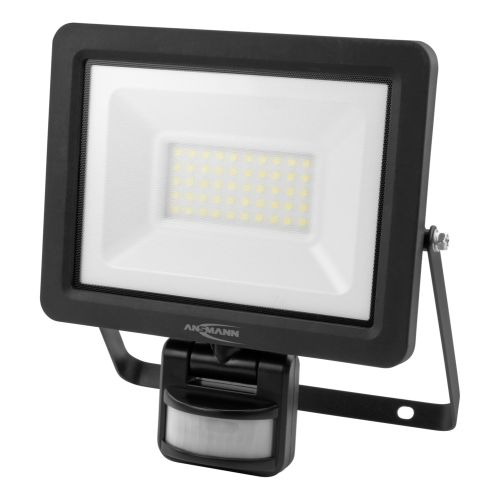

WFL30W-S

Robust and compact 30 W ANSMANN Luminary LED wall spotlight with PIR movement detector

Please login to see price

More Information
Part number 1600-0623
EAN code 4013674201730
Product content WFL30W-S, operating instructions
Packaging unit pieces 4 Stück
Product weight 0 kg
Warranty 10 years

Your project, your passion, your light

ANSMANN stands for quality and reliability! We have set ourselves the goal of providing high quality products for professionals and hobby craftspeople. Our WFL30W-S is a professional spotlight with SMD LED technology. The reliable ANSMANN Luminary lamp provides optimum lighting around the home, e.g. in workshops, construction sites, industry, household, wooden halls, garden, yard or garage.

Integrated movement detector

It switches on automatically - the sensor covers an area of up to 12m ensuring that no one is left groping around in the dark. The lighting time can be set from 10 seconds to 5 minutes. The sensitivity is also selectable. This ensures that the light only switches on with the selected light characteristics.

High performance lighting power

The lamp creates an intense, bright light through the use of high-performance SMD LED technology. This provides a brightness level of up to 3.300 Lumen. Thanks to the wide beam angle, the bright light is uniformly distributed. The colour temperature of the LEDs is ca. 5000K, which does not overly strain the eyes and provides a pleasant natural white light.

Robust, impact resistant and splash-proof

The robust and impact resistant housing is resistant to mechanical stresses. Thanks to the IP65 protection rating, the light is fully protected against foreign objects (dust), contact and splashed water from any angle and the spotlight is ideal for use in indoor and outdoor areas as it can withstand these conditions at all times! As a result, you can concentrate fully on your work with ideal illumination.

Ready to use immediately

The SMD LEDs require less than 1 second start-up time to reach full power. So, the light delivers full power immediately.

More Information
Input voltage 230V AC
Power consumption at no load 0,000 W
Energy efficiency class E
Illuminant SMD-LED
Illuminant power 30 W
Lamp life < 30.000 h
Luminous flux 3.300 Lumen
Colour temperature 5000 K
Farbwiedergabeindex (CRI) RA >80
IK Protection Class IK07
Protection class IP65
Adjustment angle 360°
Mounting height max. 2.99m
Horizontal beam angle 110 °
Packaging cardboard box
Storage temperature -20 - 80 °C
Operating temperature -20 - 50 °C
Housing material Aluminium
WFL30W-S, operating instructions
