WFL2400, operating instructions
WFL2400

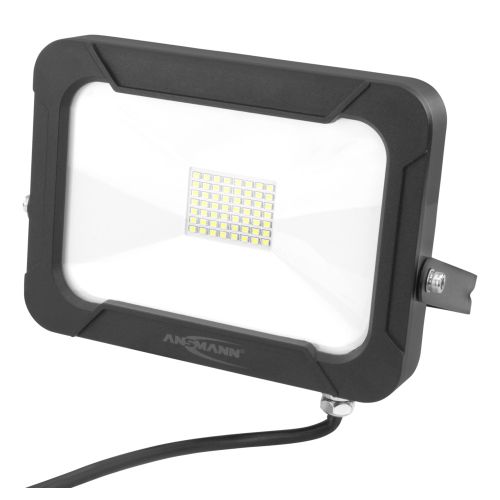

Robust and compact ANSMANN Luminary LED wall spotlight with 30 W
| Part number | 1600-0282 |
|---|---|
| EAN code | 4013674154463 |
| Product content | WFL2400, operating instructions |
| Packaging unit pieces | 6 |
| Product weight | 1.15 kg |
| Dimensions | 23.5 × 3.5 × 20 cm |
| Warranty | 10 years |
Your project, your passion, your light
ANSMANN stands for quality and reliability! We have set ourselves the goal of providing high quality products for professionals and hobby craftspeople. Our WFL2400 is a professional spotlight with SMD LED technology. The reliable ANSMANN Luminary lamp provides optimum lighting around the home, e.g. in workshops, construction sites, industry, household, wooden halls, garden, yard or garage.
High performance lighting power
The lamp creates an intense, bright light through the use of high-performance SMD LED technology. This provides a brightness level of up to 2.700 Lumen. Thanks to the wide beam angle, the bright light is uniformly distributed. The colour temperature of the LEDs is ca. 5000K, which does not overly strain the eyes and provides a pleasant natural white light.
Robust, impact resistant and splash-proof
The robust and impact resistant housing is resistant to mechanical stresses. Thanks to the IP54 protection rating, the light is fully protected against foreign objects (dust), contact and splashed water from any angle. As a result, you can concentrate fully on your work with ideal illumination.
For indoors and out
The short, integrated H05RN-F cable enables a firm and flexible connection with low mechanical stresses in dry, damp and wet rooms. As a result, the spotlight is ideal for use in indoor and outdoor areas as it can withstand these conditions at all times!
Ready to use immediately
The SMD LEDs require less than 1 second start-up time to reach full power. So, the light delivers full power immediately.
| Input voltage | 230V AC |
|---|---|
| Power consumption at no load | 0,000 W |
| Energy efficiency class | F |
| Cable length | 30 cm |
| Illuminant | LED |
| Illuminant power | 30 W |
| Lamp life | < 50.000 h |
| Light range | 60 m |
| Luminous flux | 2.700 Lumen |
| Brightness | 3.640 Lux |
| Colour temperature | 5000 K |
| Farbwiedergabeindex (CRI) | RA >80 |
| Start-up time 0-60% | 0,3 s |
| IK Protection Class | IK05 |
| Protection class | IP54 |
| Adjustment angle | 360° |
| Mounting height | max. 2.99m |
| Horizontal beam angle | 110 ° |
| Color | black |
| Packaging | cardboard box |
| Storage temperature | -25 - 65 °C |
| Operating temperature | -20 - 50 °C |
| Housing material | Aluminium |
