Travel Charger TC230PD, Bedienungsanleitung
Travel Charger TC230PD
Intelligent USB charger 30 W with AC change plugs for US/UK/EU - for smartphones, tablets and other USB devices
| Part number | 1001-0140 |
|---|---|
| EAN code | 4013674192441 |
| Product content | Travel Charger TC230PD, Bedienungsanleitung |
| Packaging unit pieces | 60 Stück |
| Product weight | 0.134 kg |
| Dimensions | 5.8 × 3.1 × 5.8 cm |
| Warranty | 3 years |
With 2 and a power rating of 30 W, the USB charger from ANSMANN offers the ideal charging solution for your application. Your device is optimised and safely charged thanks to the intelligent charge control and Multisafe technology. Very low stand-by consumption makes this charger not only efficient, but also economical.

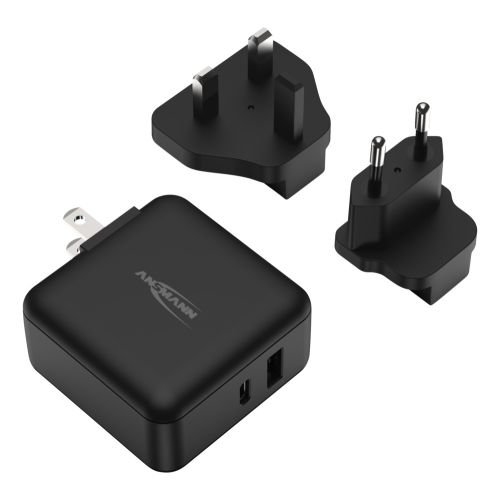

The device has a retractable US plug, making it very compact and space-saving to fit in any pocket. The interchangeable plugs for UK and EU are simply pushed onto the folded-in US plug. This means they can be connected to the local power in seconds in most countries around the world and can charge up to 2 USB devices at the same time as usual.
| Input voltage | 100 - 240V AC |
|---|---|
| Max. input current | 1 A |
| AC frequency | 50 / 60 |
| Port | USB type C, USB-A |
| Output voltage | 5 - 20V DC |
| Max. output current | 3 A |
| Maximum power | 30 W |
| Functions | Overcurrent protection, Overvoltage protection, Short circuit protection |
| Charging protocol | USB, Power Delivery Profile 3 |
| USB-Ports | 2 |
| Average operational efficiency | 80,4 % |
| Efficiency at low load | 70,5 % |
| Power consumption at no load | 0,290 W |
| Color | black |
| Packaging | box |
| Storage temperature | -25 - 70 °C |
| Operating temperature | 0 - 25 °C |
Charging currents
| Mode | Voltage | Max. current | Max. power |
|---|---|---|---|
| USB-C | 5,0 V | 3,0 A | 15,0 W |
| USB-C | 9,0 V | 3,0 A | 27,0 W |
| USB-C | 12,0 V | 2,5 A | 30,0 W |
| USB-C | 15,0 V | 2,0 A | 30,0 W |
| USB-C | 20,0 V | 1,5 A | 30,0 W |
| USB-A | 5,0 V | 2,1 A | 10,5 W |
| USB-A + USB-C: USB-A | 5,0 V | 2,1 A | 10,5 W |
| USB-A + USB-C: USB-C | 5,0 V | 3,0 A | 15,0 W |
| USB-A + USB-C: USB-C | 9,0 V | 2,2 A | 20,0 W |
| USB-A + USB-C: USB-C | 12,0 V | 1,7 A | 20,0 W |
| USB-A + USB-C: USB-C | 15,0 V | 1,3 A | 20,0 W |
| USB-A + USB-C: USB-C | 20,0 V | 1,0 A | 20,0 W |
