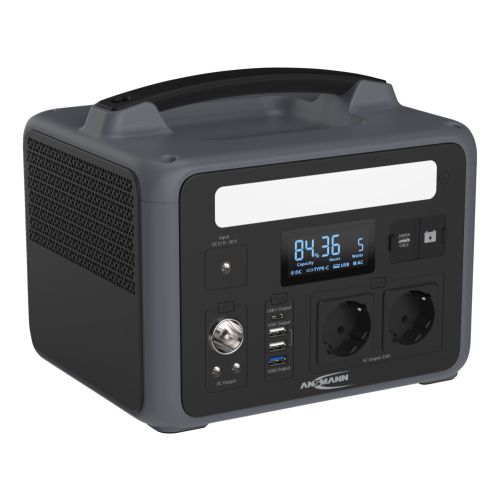

Powerstation 600W

Powerful power station with 2× AC outlet 600W, 12V car outlet 120W, 2× DC5521 DC outputs, USB-C Power Delivery 60W, 2× USB-A, 1× USB-A QC 18W, jumper cable port, expansion module port and powerful LED lamp.

Please login to see price

More Information
Part number 1700-0167
EAN code 4013674195220
Product content Powerstation, AC mains adapter, 12V DC power unit, operating instructions, warranty card
Packaging unit pieces 1 Packungen
Product weight 9.408 kg
Dimensions 26 × 22 × 20 cm
Warranty 3 years

Electrical power at any place, at any time. With Ansmann Powerstations you can enjoy mains independence like never before!

Let's face it – without electricity, hardly anything is possible these days. Our modern life is dependent on energy from the socket. But what do you do if the power fails or a mains socket is unavailable?

The Ansmann Powerstation is your portable socket, a power bank for all devices, your helper in an emergency in the event of a power cut, the power supply for your garden shed or when you are on holiday. The applications are almost limitless.

Just like a conventional power generator, you can operate your equipment independently of the mains, but without petrol or diesel, without smoke and stench, without booming noise! The Powerstation can be used both indoors and outdoors and is your safe bank when it comes to independent power supply!

In combination with a solar panel, you can make yourself completely independent of the grid and become your own electricity producer! Charge your Powerstation within a few hours in good sunlight, e.g. with the Ansmann 100 W solar panels.

Handy and easy to transport

Ideal for travelling - the Powerstation measures 260×220×200 mm, weighs 9408 g and is easy to transport using the carrying handle.

The helper in times of need!

In the event of a power failure, the Powerstation takes over for your important applications: refrigerator, freezer, aquarium, medical equipment (e.g. CPAP respirators), security electronics, water pumps, heating pump, security systems, etc.

But comfort is not forgotten either, regardless of whether there is a power failure or the next socket is too far away - the Powerstation reliably operates kitchen appliances, air conditioning units, mobile phones, tablets, notebooks, projectors, stereo systems, etc.

Safety

Perhaps you have already heard of burning e-cars or exploding mobile phone batteries. This cannot happen with Ansmann Powerstations! Ansmann uses special lithium iron phosphate batteries (LiFePO4) for the high-capacity Powerstations - these cannot catch fire even if damaged and have an impressive service life up to 10 times longer than conventional lithium batteries. Your investment will therefore certainly give you pleasure for a long time.

Charge however you want – 4 possible charging sources

Use different ways to recharge the Powerstation, the right interface for every occasion: At the wall socket using the AC power adapter supplied, in the car using the 12V car charger cable supplied, via USB-C PD connection or at the solar panel input.

Functions and connections for all needs

  • AC sockets: The integrated sockets provide power for all AC mains appliances with a continuous consumption of up to 600 Watts (short-term peak power 1200 Watts!). Are you an electrical specialist? Then you are certainly familiar with the problem of modified sine waves in DC/AC inverters. The sockets of the large Ansmann Powerstations supply a pure sine wave – so, damage to electrical circuits can be ruled out!
  • DC connections for all occasions: Your electric tyre pump only has a 12V cable for the car socket? No problem, just such a socket is also built into the Powerstation, providing up to 120 Watts of power for your 12V devices! 2 additional DC5521 DC outputs up to 12 V / 120 Watt are available for many applications.
  • USB ports with fast charging functionality: Modern communication devices often need recharging. The Ansmann Powerstation already has the USB-A and USB-C interfaces built in. You don't need an extra charger to charge your smartphone, tablet or notebook! Simply plug into the USB-A or USB-C port and with up to 60 Watts with fast charging protocol, your device will get a pressure refuelling!
  • Powerful LED lamp: Helper in the dark - you don't need any extra lighting, a generously dimensioned 10 Watt LED lamp is already integrated in the Powerstation. With three dimming levels, strobe mode and SOS signal, the LED light is versatile.
  • Functional display: The discreet LED display provides information about the essential functions and values of the Powerstation at a glance: Capacity, active outputs and current consumption are clearly displayed without any frills.
  • Built-in safety: The Powerstation has several protection systems and shutdown prevention for low-current applications.
More Information
Input ports USB type C
Output ports USB type C, USB-A
Energy 640 Wh
Functions Overcharging protection, Overcurrent protection, Overvoltage protection, Short circuit protection
Cell chemistry Lithium iron phosphate
Nominal voltage 12,8 V
Nominal capacity 50000 mAh
Maximum power 600 W
Max. Eingangsleistung 100 W
Color black
Storage temperature -20 - 55 °C
Operating temperature -20 - 55 °C

Charging currents

ModeVoltageMax. currentMax. power
USB-A1/-A25,0 V2,4 A12,0 W
USB-A QC5,0 V3,0 A15,0 W
USB-A QC9,0 V2,0 A18,0 W
USB-A QC12,0 V1,5 A18,0 W
USB-C PD5,0 V3,0 A15,0 W
USB-C PD9,0 V3,0 A18,0 W
USB-C PD12,0 V3,0 A36,0 W
USB-C PD15,0 V3,0 A45,0 W
USB-C PD20,0 V3,0 A60,0 W
DC1/DC2/DC312,0 V10,0 A120,0 W
AC230,0 V600,0 W
Jump start12,0 V500,0 A
Powerstation, AC mains adapter, 12V DC power unit, operating instructions, warranty card
