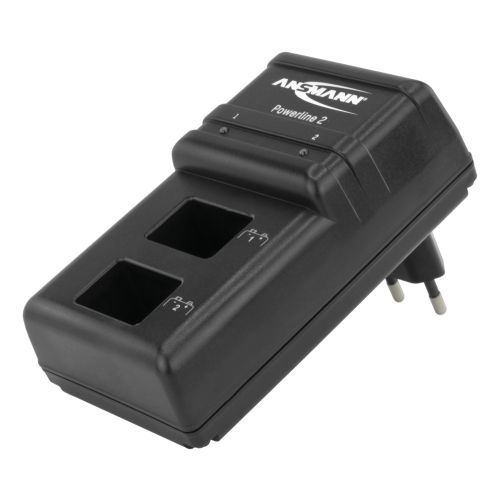

Powerline 2

Charge and use again

Long term use of disposable batteries is a huge burden - both for your purse and for the environment. So, why not switch to rechargeable batteries, which are available in all sizes. To ensure that the investment in rechargeable batteries is worth it in the long run, it is important to use a charger that can charge the rechargeable batteries optimally and thus significantly lengthen their service life. Ideally, a charger from the world market leader for high-quality charging technology: ANSMANN.

Simplest operation

The detection of the batteries inserted is fully automatic without the requirement for tedious adjustments with knobs or switches. The charge process starts immediately, once the cells have been inserted with the correct polarity. You can easily charge one or two rechargeable batteries independently from one another thanks to the individual slot monitoring. The device automatically detects defective cells and informs you to dispose of these. This foolproof operation saves you a lot of time.

Longer fun with your rechargeable batteries

To ensure that the rechargeable batteries are still able to provide their optimal power even after many charge cycles, it is important that they are always charged carefully and safely. The Powerline 2 from ANSMANN has a high-quality, microcontroller-controlled charging system that utilises several methods to protect the rechargeable battery from rapid wear. These include the automatic shutdown of the charge process as soon as the cells are fully charged as well as protective maintenance charging for all batteries after the actual charge process, amongst others. High-capacity cells in particular must be treated with great care due to their high energy density. The special electronics in the Powerline 2 from ANSMANN guarantee the highest levels of safety. To do so, we have further improved the automatic switch-off system that we developed in-house for you.

Smart extras

A colour-coded LED display is integrated above each slot to enable quick and simple reading of the charge status for your rechargeable batteries. The Powerline 2 from ANSMANN can be used all over the world thanks to the wide input range. The integrated plug-in mains adapter (100-240V) saves a lot of space and can be plugged directly into the mains outlet.

Summary of functions:

• Intelligent charger for 1-2 9V PP3 NiMH rechargeable batteries with 8.4V nominal voltage
• Automatic charge start after rechargeable battery is inserted
• Microcontroller-monitored charge control
• Multiple over-charging protection through voltage monitoring (-dU) and safety timer
• Fully-charged detection and automatic changeover to pulse maintenance charging
• Individual slot monitoring (separate charging for each rechargeable battery)
• Reverse polarity protection
• Defective battery detection
• Indication of the rechargeable battery status via a multicolour LED for each charge slot
• Worldwide use (100V-240V AC / 50-60Hz)
