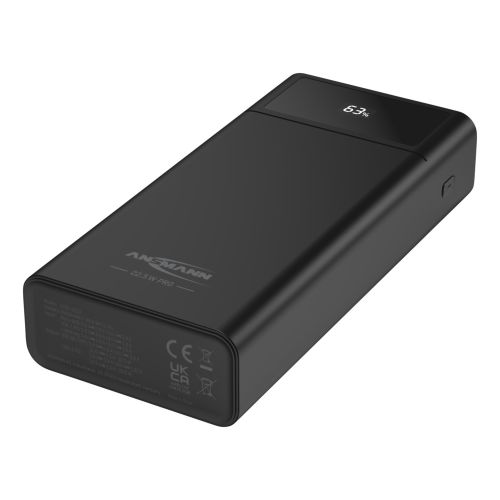

Powerbank 24000 mAh PB322PD

External rechargeable battery with a power of up to 22,5 W. Quick-charge capable with 2 USB-A Ports (compatible with Quick Charge 3.0 & Huawei Supercharge) and a USB Type-C Port (Power Delivery (PD)) as well as a capacity of 24000 mAh.

Please login to see price

More Information
Part number 1700-0153
EAN code 4013674191543
Product content Powerbank, USB Type-C cable, operating instructions
Packaging unit pieces 16 Packungen
Product weight 0.501 kg
Dimensions 16 × 7.2 × 3.2 cm
Warranty 3 years

ANSMANN Powerbank – the mobile energy filling station

Who hasn't been here: You're out on a cycling tour, hike, holiday, long-haul flight or at a friend's and suddenly your smartphone battery status shows zero – and there is no charging facility anywhere in sight!

This problem is now a thing of the past, because the practical Powerbank from ANSMANN provides an immediate energy boost with extra-large capacity and the latest fast-charging technology - even for very power-hungry applications.

High charge speeds

The ANSMANN Powerbank offers two USB-A ports and one type-C port. All ports support end devices that are capable of being quick-charged with the fastest possible charging.

The rechargeable battery pack can be conveniently recharged via the Micro-USB connection, the Lightning-compatible port or the Type C ports by a standard USB charger plugged into the mains. The Powerbank can be very quickly charged with a quick-charge device.

Powerpack for a great variety of applications

With a charge capacity of 24000 mAh and an output power of up to 4,5 A, the powerpack is able to charge mobile devices several times. The high-quality external battery pack with sturdy housing is compatible with all standard USB devices such as smartphones, tablets, mobile phones, MP3 players, navigation units and many other devices that can be charged via USB. The USB-A port can be used for rapid charging and is compatible with QuickCharge 3.0 and Huawei SuperCharge with max. 22.5W. Thanks to the Power Delivery (PD) protocol, notebooks can now also be charged via the Type C port.

Multi-Safe technology

The media constantly carries warnings about cheap products that start to burn or even explode without warning. You're on the safe side with ANSMANN. The integrated over-charging protection ensures that the Powerbank stops the charge process automatically once charging has been successfully completed. The deep discharge protection switches the Powerbank off as soon as the voltage of the Powerbank drops below a defined value when charging the connected device, thus preventing damage to both the rechargeable battery and the product. The short-circuit protection completes the safety functions and ensures maximum safety along with the automatic shut-off.

LED capacity display

The charge status indication can be activated with the push of a button enabling the current capacity to be reliably displayed via the integrated LED display with percentage-point accuracy.

More Information
Input ports Lightning, Micro USB, USB type C
Output ports USB type C, USB-A
Energy 88,8 Wh
Output voltage 5 - 12V DC
Functions Overcharging protection, Overcurrent protection, Overvoltage protection, Short circuit protection, Temperature control
Max. output current 4,5 A
Max. input current 2 A
Charging cycles 300
Input voltage 5 - 9V DC
Cell chemistry Lithium polymer
Nominal voltage 3,7 V
Nominal capacity 24000 mAh
Maximum power 22,5 W
Max. Eingangsleistung 18 W
Color black
Packaging cardboard box
Storage temperature -10 - 55 °C
Operating temperature -10 - 35 °C

Charging currents

ModeVoltageMax. currentMax. power
USB-A5,0 V4,5 A22,5 W
USB-A9,0 V2,0 A18,0 W
USB-A12,0 V1,5 A18,0 W
USB-C5,0 V3,0 A15,0 W
USB-C9,0 V2,2 A20,0 W
USB-C12,0 V1,5 A18,0 W
USB-A + USB-C5,0 V3,0 A15,0 W
Powerbank, USB Type-C cable, operating instructions
