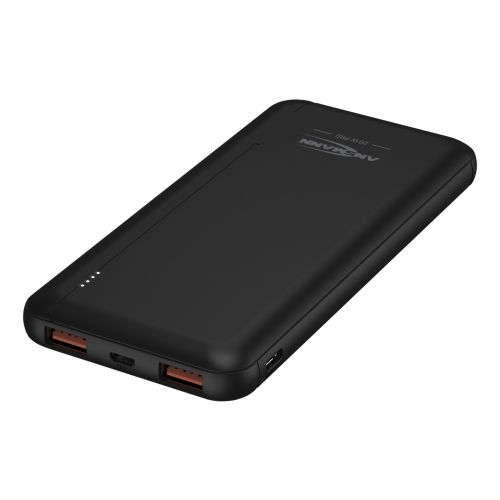

Powerbank 10000 mAh PB320PD

External rechargeable battery with a power of up to 20 Watts. Quick-charge capable with 2 USB-A Ports (Quick Charge 3.0) and a USB Type-C Port (Power Delivery (PD)) as well as a capacity of 10000 mAh.

Please login to see price

More Information
Part number 1700-0148
EAN code 4013674187225
Product content Powerbank, micro-USB cable, operating instructions
Packaging unit pieces 33 Packungen
Product weight 0.233 kg
Dimensions 14.6 × 6.9 × 1.6 cm
Warranty 3 years

ANSMANN Powerbank – the mobile energy filling station

Who hasn't been here: You're out on a cycling tour, hike, holiday, long-haul flight or at a friend's and suddenly your smartphone battery status shows zero – and there is no charging facility anywhere in sight!

This problem is now a thing of the past, as the practical and elegantly styled Powerbank from ANSMANN is light, powerful and always close at hand. Thanks to the compact construction, the light energy store can fit in the pocket of any jacket, trousers or handbag.

High charge speeds

Alongside the USB-A port, the ANSMANN Powerbank also has a Type C and a micro-USB port integrated. Energy is fed from the USB or Type C connections to your smartphone and/or tablet via charge cable. All ports support end devices that are capable of being quick-charged with the fastest possible charging. Thanks to the new Power Delivery (PD) protocol, notebooks can also be charged via the Type C port.

The rechargeable battery pack can be conveniently recharged via the Micro-USB or Type C ports by a standard USB charger plugged into the mains. The Powerbank can be particularly quickly charged with a quick-charge device (QC or PD) USB-C input.

Powerpack for a great variety of applications

With a charge capacity of 10000 mAh and an output power of up to 3 A, the compact powerpack is able to charge mobile devices several times. The high-quality external battery pack with sturdy housing is compatible with all standard USB devices such as smartphones, tablets, mobile phones, MP3 players, navigation units and many other devices that can be charged via USB. Thanks to the new Power Delivery (PD) protocol, notebooks can now also be charged via the Type C port.

Multi-Safe technology

The media constantly carries warnings about cheap products that start to burn or even explode without warning. You're on the safe side with ANSMANN. The integrated over-charging protection ensures that the Powerbank stops the charge process automatically once charging has been successfully completed. The deep discharge protection switches the Powerbank off as soon as the voltage of the Powerbank drops below a defined value when charging the connected device, thus preventing damage to both the rechargeable battery and the product. The short-circuit protection completes the safety functions and ensures maximum safety along with the automatic shut-off.

LED capacity display

The charge status indication can be activated with the push of a button enabling the current capacity to be reliably displayed in 25% steps via four integrated LEDs.

More Information
Input ports Micro USB, USB type C
Output ports USB type C, USB-A
Energy 37 Wh
Output voltage 5 - 12V DC
Functions Automatic voltage detection, Charge current control, Overcharging protection, Overcurrent protection, Overvoltage protection, Short circuit protection
Max. output current 3 A
Max. input current 3 A
Charging cycles 300
Input voltage 5 - 9V DC
Cell chemistry Lithium polymer
Nominal voltage 3,7 V
Nominal capacity 10000 mAh
Maximum power 20 W
Max. Eingangsleistung 18 W
Color black
Packaging cardboard box
Storage temperature -20 - 40 °C
Operating temperature -10 - 40 °C

Charging currents

ModeVoltageMax. currentMax. power
USB-A5,0 V3,0 A15,0 W
USB-A9,0 V2,0 A18,0 W
USB-A12,0 V1,5 A18,0 W
USB-C5,0 V3,0 A15,0 W
USB-C9,0 V2,2 A20,0 W
USB-C12,0 V1,7 A20,0 W
USB-A + USB-C5,0 V3,0 A15,0 W
Powerbank, micro-USB cable, operating instructions
