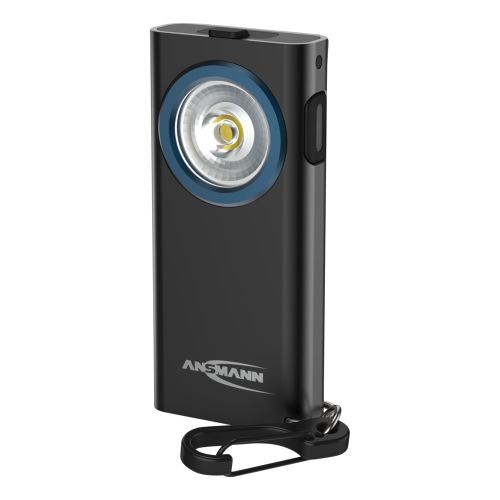

ML400R Mini light

Mini light with boost function, rechargeable, small and powerful, incl. mounting magnets, clip and mini snap hook

Please login to see price

More Information
Part number 1600-0597
EAN code 4013674198696
Product content Light, USB Type-C charge cable, operating instructions
Packaging unit pieces 10 Stück
Product weight 0.042 kg
Dimensions 6 × 2.8 × 1.5 cm
Warranty 2 years

Mini light

The small, handy and reliable light integrates effortlessly into demanding everyday life for universal illumination in the respective area of use.

High-performance lighting power

Thanks to the use of LED technology, the lamp produces an intense light and reaches a brightness of 150 lumens, and even up to 400 lumens in short-term boost mode despite its small design.
The light from the LED has a colour temperature of approx. 7200K (+/10%).

Universal use

The lamp is equipped with a small snap cook, a mounting magnet as well as a mounting clip with integrated mounting magnet, enabling universal fastening during use.

Lithium rechargeable battery pack - charge and go

A permanently installed lithium-polymer battery with 3,7 V provides up to 8 hours of light. The lamp can be charged with a USB charger via a Type-C charging socket. The practical charge monitoring display provides reliable information about the charge status. Whether on the road or at home, with the ML400R Mini light you always have the best companion to shed some light in the dark!

Summary of functions:

  • Mini light with LED technology
  • Robust aluminium housing
  • Including Mini snap hook for universal attachment
  • Incl. Mounting magnet
  • Incl. Mounting clip on the back of the housing with integrated magnet
  • Permanently installed Li-Po battery pack (3,7 V / 300 mAh / 1.11 Wh)
  • Battery charge indicator

Instructions for use

This lamp is designed for mobile use, the included LED lamp is not replaceable and not suitable for household room illumination.

More Information
Illuminant LED
Illuminant power 5 W
Lamp life 100.000h
Light modes

High / Medium / Low / Boost

Light range 55 m
Luminous flux 400 Lumen
Brightness 970 Lux
Colour temperature 6500 - 8000 K
IK Protection Class IK07
Protection class IPX4
Color black, blue
Packaging box
Storage temperature -5 - 35 °C
Operating temperature 5 - 45 °C
Housing material Aluminium + ABS
Light, USB Type-C charge cable, operating instructions
