Light, operating instructions

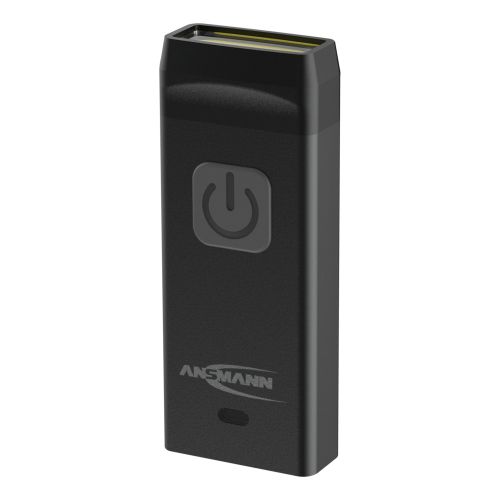

Keychain light KL80R
Dimmable LED torch in mini key-ring format with integrated USB-A plug.
| Part number | 1600-0505 |
|---|---|
| EAN code | 4013674189762 |
| Product content | Light, operating instructions |
| Packaging unit pieces | 10 Stück |
| Product weight | 0.015 kg |
| Dimensions | 5.5 × 2.2 × 1.2 cm |
| Warranty | 2 years |
The mini LED torch is ideal for the key ring. The elegant yet robust aluminium housing (IK07) is equipped with a practical on/off button (with safety circuit against accidental switch-on). The COB LED is seamlessly dimmable from 10-100% light output. The integrated Li-Po battery pack is easily recharged through the integrated USB-A plug, so no USB charging cable is needed. The torch is ultra-light and weighs only 18g. The light range is up to 10m and the battery life is up to 2.5 hours.
Instructions for use
This lamp is designed for mobile use, the included LED lamp is not replaceable and not suitable for household room illumination.
| Illuminant | COB LED |
|---|---|
| Illuminant power | 1 W |
| Lamp life | > 4000 h |
| Light range | 10 m |
| Luminous flux | 80 Lumen |
| Brightness | 30 Lux |
| Protection class | IPX3 |
| Operating time | 2,5 h |
| Power supply | Li-Po 3.7V / 100mAh / 0.37Wh |
| Color | black, grey |
| Packaging | cardboard box |
| Storage temperature | -10 - 60 °C |
| Operating temperature | -10 - 35 °C |
| Housing material | Aluminium + ABS + PC |
Performance data
| Mode | Colour temperature | Light range | Luminous flux | Brightness | Operating time |
|---|---|---|---|---|---|
| 100% | 5500 - 6500 K | 10 m | 80 lumens | 30 Lux | 30 h |
| 10% | 5500 - 6500 K | 4 m | 8 lumens | 4 Lux | 2,5 h |
