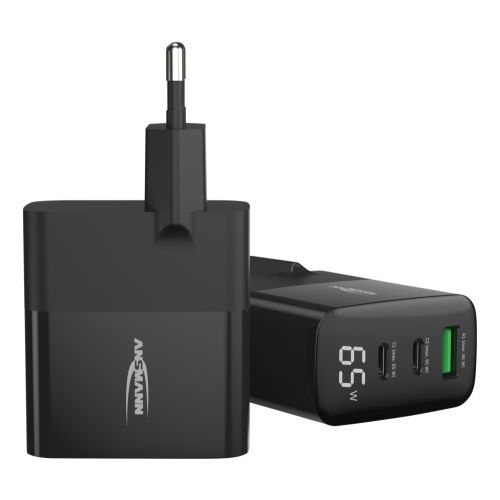

Home Charger with display HC365PD 65W

Intelligent USB charger 65 W with GaN technology and LED power indicator for notebooks, smartphones, tablets and other USB devices.

Please login to see price

More Information
Part number 1001-0150
EAN code 4013674195077
Product content Home Charger with display HC365PD 65W, manual
Packaging unit pieces 10 Stück
Product weight 0.135 kg
Dimensions 3.5 × 5.2 × 9.4 cm
Warranty 3 years

With multiple USB outputs and a power rating of 65 W, the USB charger from ANSMANN offers the ideal charging solution for your workplace in the office or at home.

This powerful device charges all your devices - from smartphones to notebooks - ultra-fast and reliably! Your device is optimised and safely charged thanks to the intelligent charge control and Multisafe technology. The LED display shows the current power consumption of all connected USB devices at any time. Very low stand-by consumption makes this charger not only efficient, but also economical.

ANSMANN chargers with GaN technology

Silicon-based electronics have been the standard since the 1970s and have become more and more powerful in quick steps. "Moore's Law" predicted a doubling of the performance of silicon-based transistors about every 18 months, which was true for a long time. In the meantime, this technology has reached a performance limit where it can no longer become much more efficient and is being replaced by GaN technology.

"GaN" stands for gallium nitrite, a semiconductor technology that can conduct high electrical currents with low heat generation. This makes it possible, for example, to offer USB chargers with high power in significantly smaller sizes.

More Information
Input voltage 100 - 240V AC
Max. input current 1.5 A
AC frequency 60Hz / 50Hz
Port USB type C, USB-A
Output voltage 5 - 20V DC
Max. output current 3 A
Maximum power 65 W
Functions Overcurrent protection, Short circuit protection, Temperature control
Charging protocol PPS, Quick Charge 3.0, Power Delivery Profile 3
USB-Ports 3
Average operational efficiency 83,1 %
Efficiency at low load 62,8 %
Power consumption at no load 0,230 W
Color black
Packaging cardboard box
Storage temperature -40 - 80 °C
Operating temperature 0 - 25 °C

Charging currents

ModeVoltageVoltage rangeMax. currentMax. power
USB-A QC5,0 V3,0 A15,0 W
USB-A QC9,0 V3,0 A27,0 W
USB-A QC12,0 V3,0 A36,0 W
USB-A QC20,0 V3,0 A60,0 W
USB-C1|C2 PD5,0 V3,0 A15,0 W
USB-C1|C2 PD9,0 V3,0 A27,0 W
USB-C1|C2 PD12,0 V3,0 A36,0 W
USB-C1|C2 PD15,0 V3,0 A45,0 W
USB-C1|C2 PD20,0 V3,3 A65,0 W
USB C1 + USB C2: C15,0 V3,0 A15,0 W
USB C1 + USB C2: C19,0 V3,0 A27,0 W
USB C1 + USB C2: C112,0 V3,0 A36,0 W
USB C1 + USB C2: C115,0 V3,0 A45,0 W
USB C1 + USB C2: C120,0 V2,3 A45,0 W
USB C1 + USB C2: C25,0 V3,0 A15,0 W
USB C1 + USB C2: C29,0 V2,0 A18,0 W
USB C1 + USB C2: C212,0 V1,7 A20,0 W
USB C1 + USB A: C15,0 V3,0 A15,0 W
USB C1 + USB A: C19,0 V3,0 A27,0 W
USB C1 + USB A: C112,0 V3,0 A36,0 W
USB C1 + USB A: C115,0 V3,0 A45,0 W
USB C1 + USB A: C120,0 V2,3 A45,0 W
USB C1 + USB A: A5,0 V3,0 A15,0 W
USB C1 + USB A: A9,0 V2,0 A18,0 W
USB C1 + USB A: A12,0 V1,5 A18,0 W
USB C2 + USB A (shared)5,0 V4,8 A24,0 W
USB C1 + C2 + USB A: C15,0 V3,0 A15,0 W
USB C1 + C2 + USB A: C19,0 V3,0 A27,0 W
USB C1 + C2 + USB A: C112,0 V3,0 A36,0 W
USB C1 + C2 + USB A: C115,0 V3,0 A45,0 W
USB C1 + C2 + USB A: C120,0 V2,3 A45,0 W
USB C1 + C2 + USB A: C2 + A (shared)5,0 V3,0 A15,0 W
USB-A QC3.03,6 - 20,0 V DC3,0 A60,0 W
USB-A SCP3,4 - 5,5 V DC4,5 A24,7 W
USB-C1 SCP3,4 - 5,5 V DC4,5 A24,7 W
USB C1 QC3.03,6 - 19,8 V DC3,0 A59,4 W
USB C2 SCP3,4 - 5,5 V DC4,5 A24,7 W
USB C2 QC3.03,6 - 20,0 V DC3,0 A60,0 W
USB-C2 PPS3,3 - 16,0 V DC3,0 A48,0 W
