Home Charger HC130PD mini, manual

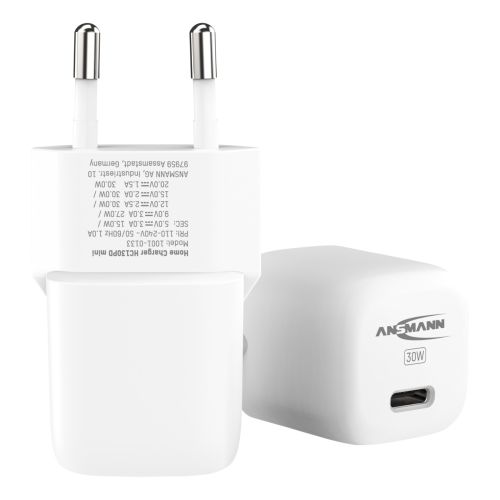

Home Charger HC130PD mini
Intelligent mini-USB charger with GaN technology and 30 W. Compatible with Laptops, Apple MacBook Air, iPhone 12 & 13, Samsung Galaxy S20, S20+, S20 Ultra and many other smartphones, tablets and other USB devices
| Part number | 1001-0154 |
|---|---|
| EAN code | 4013674196050 |
| Product content | Home Charger HC130PD mini, manual |
| Packaging unit pieces | 60 Stück |
| Product weight | 0.044 kg |
| Dimensions | 3 × 3 × 6.8 cm |
| Warranty | 3 years |
The enormously small USB-PD charger from ANSMANN can fit in any trouser pocket! With 1 USB port and a power rating of 30 W, it is an ideal charging solution for your situation. The intelligent charging control is compatible with PowerDelivery, which even makes it possible to charge and operate smaller business laptops thanks to a 20V output voltage being possible. Ideal for travelling and for working from home!
The Multisafe technology provides safety throughout the whole charge process. Very low stand-by consumption makes this charger not only efficient, but also economical.
| Input voltage | 110 - 240V AC |
|---|---|
| Max. input current | 1 A |
| AC frequency | 60Hz / 50Hz |
| Port | USB type C |
| Output voltage | 5 - 20V DC |
| Max. output current | 3 A |
| Maximum power | 30 W |
| Kompatibilität | Laptops, Apple MacBook Air, iPhone 12 & 13, Samsung Galaxy S20, S20+, S20 Ultra |
| Functions | Overcurrent protection, Overvoltage protection, Short circuit protection, Temperature control |
| Charging protocol | Power Delivery Profile 3 |
| USB-Ports | 1 |
| Average operational efficiency | 81,4 % |
| Efficiency at low load | 77,0 % |
| Power consumption at no load | 0,090 W |
| Color | white |
| Packaging | cardboard box |
| Storage temperature | -25 - 70 °C |
| Operating temperature | -20 - 35 °C |
Charging currents
| Mode | Voltage range | Max. current | Max. power |
|---|---|---|---|
| USB-C PD | 5,0 V DC | 3,0 A | 15,0 W |
| USB-C PD | 9,0 V DC | 3,0 A | 27,0 W |
| USB-C PD | 12,0 V DC | 2,5 A | 30,0 W |
| USB-C PD | 15,0 V DC | 2,0 A | 30,0 W |
| USB-C PD | 20,0 V DC | 1,5 A | 30,0 W |
