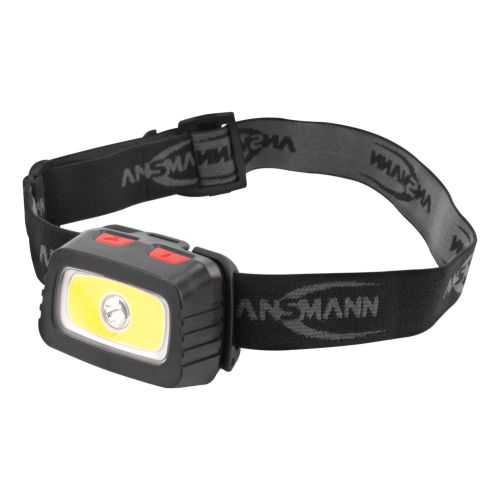

Headlight HD200B

High-quality, splash-proof, head light with 3W LED and 1.5W COB LED, 185 lumen

Please login to see price

More Information
Part number 1600-0198
EAN code 4013674127542
Product content Head light, head band, 3 AAA alkaline batteries
Packaging unit pieces 18 Stück
Product weight 0.102 kg
Dimensions 6.8 × 4.7 × 3.4 cm
Warranty 3 years

Multifunctional use

Professional head lamps are not only well loved in everyday use by joggers and cyclists, but also in industry, by tradesmen, the emergency services, when camping, climbing and fishing.

Both hands remain free and the light is always at just the right spot!
The housing has been developed in-house, made from ABS plastic to ensure that the lamp is robust and has pleasant haptics.

Super-light, easy-to-wear head lamp

At 72g, the ANSMANN HD200B head lamp is a real flyweight and so is very comfortable to wear even for long periods of time.

Universal head band

The elastic head band is flexible and universally adjustable, ensuring a secure hold on any head
The head band clasp offers two functions:

A hook for hanging the lamp (e.g. in a tent or similar) and a “thunderer” whistle in order to draw attention in hazardous situations, for example.

Optimum lighting thanks to high-efficiency reflector system.

For maximum light output, the main LED is surrounded by an optical reflector system that optimally concentrates the light to ensure a long range. This results in very good illumination of distant objects. The COB LED provides a pleasant light intensity for close-quarters work. This mode is ideally suited to short range use due to the wide and very homogeneous illumination.

Adjustable lamp head

The ultra-bright 3W LED as well as the 1.5W COB LED and the 45° adjustable incline angle of the lamp head guarantee optimum illumination in every situation.

Different light modes

The head lamp has two ergonomic pushbuttons, which are easy to operate, even when the lamp is on the head. The lamp is likewise easy to operate whilst wearing gloves. The lamp has the following switch options:
Switch 1: Two brightness levels can be selected: A 100% high power mode, which uses the full lighting power of both LEDs at 100%. In level 2, the 3W LED lights at 100%.
Switch 2 for COB LED: Two brightness levels can be selected: 100% or 30% for the COB LED.
The 30% energy-saving mode is particularly well suited to close-range if only moderate lighting is required. Of course, the battery life is increased in energy-saving mode.

Protection class IP44

With its IP44 protection rating, the head lamp is protected from splashed water ingress and so is ideal for outdoor use.

Instructions for use

This lamp is intended for mobile use, the included LED lamp is not suitable for household room lighting.

More Information
Illuminant LED
Illuminant power 3 W
Light range 50 m
Luminous flux 185 Lumen
Protection class IP44
Operating time 17 h
Power supply 3× Micro AAA / LR03
Color black, red
Packaging blister packaging
Storage temperature -20 - 70 °C
Operating temperature -10 - 25 °C

Performance data

ModeColour temperatureLight rangeLuminous fluxBrightnessOperating time
Head light, head band, 3 AAA alkaline batteries
