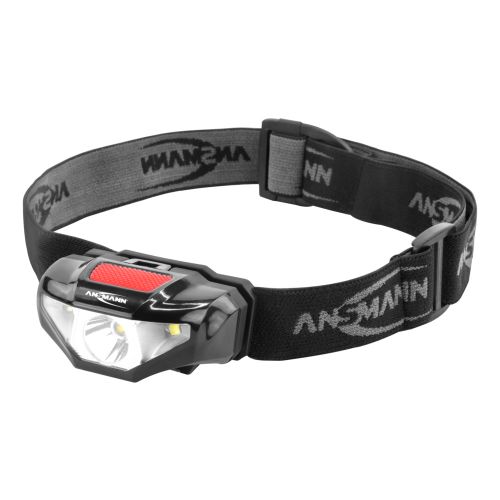

HD70B

Head lamp made from ABS plastic with 3W LED as well as auxiliary LEDs, 65 lumens, splash-proof

Please login to see price

More Information
Part number 1600-0260
EAN code 4013674151257
Product content Head lamp, head band, 1 AA battery, operating instructions
Packaging unit pieces 4 Stück
Product weight 0.066 kg
Dimensions 6.4 × 2.8 × 3.6 cm
Warranty 3 years

Super-bright, easy-to-wear head lamp

Head lamps are not only well loved by joggers and cyclists, but also in industry, by rescue services, mountaineers, tradesmen, technicians, the emergency services, and when camping, climbing or fishing: Both hands remain free and the light is always at just the right spot! The ABS plastic housing ensures the required level of robustness and pleasant haptics.

Optimum lighting thanks to high-efficiency reflector system

For maximum light output, the LED is surrounded by an optical reflector system that optimally concentrates the light to ensure a long range. The two auxiliary LEDs provide a pleasant light for activities in the immediate vicinity.

Different light modes

In 100% mode, the 3W main LED achieves a battery life of up to 4.5h and a brightness of up to 70 lumens. In 25% mode, up to 36 hours and 16 lumens. The two auxiliary LEDs will run for up to 13 hours at 12 lumens.

Adjustable lamp head and head band

The individually adjustable tilt angle of the lamp head and a universally adjustable head band guarantee optimum lighting in all situations.

Super-light, easy-to-wear head lamp

At 66g (incl. the supplied battery) the HD70B head lamp is a real flyweight and so is very comfortable to wear even for long periods of time.

Protection class IP44

With its IP44 protection rating, the head lamp is protected from splashed water ingress and so is ideal for outdoor use.

Instructions for use

This lamp is designed for mobile use, the included LED lamp is not replaceable and not suitable for household room illumination.

More Information
Illuminant LED
Illuminant power 3 W
Light range 80 m
Luminous flux 65 Lumen
Brightness 1.600 Lux
Protection class IP44
Operating time 36 h
Power supply 1x Mignon AA / LR6
Color black
Packaging blister packaging
Storage temperature -10 - 50 °C
Operating temperature -10 - 25 °C

Performance data

ModeColour temperatureLight rangeLuminous fluxBrightnessOperating time
Head lamp, head band, 1 AA battery, operating instructions
