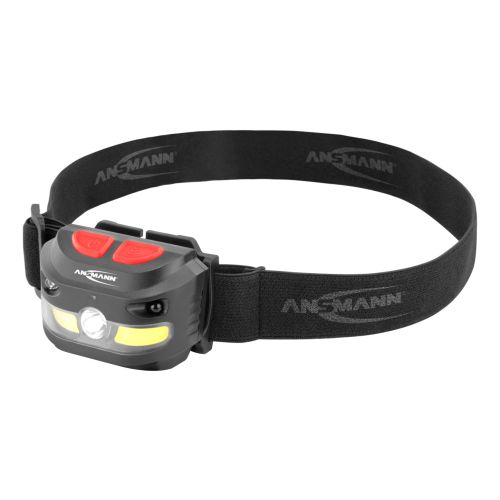

HD250RS

Rechargeable sensor head lamp 4W COB + 5W LED, splash-proof

Please login to see price

More Information
Part number 1600-0224
EAN code 4013674139873
Product content HD250RS, USB type-C charging cable, operating instructions
Packaging unit pieces 6 Stück
Product weight 0.08 kg
Dimensions 5.8 × 3.7 × 4.4 cm
Warranty 3 years

Multifunctional use

Professional head lamps are not only well loved in everyday use by joggers and cyclists, but also in industry, by tradesmen, the emergency services, when camping, climbing and fishing.

Thanks to the integrated sensor, both hands remain free and the light is always at just the right spot!
The housing has been developed in-house, made from ABS plastic to ensure that the lamp is robust and has pleasant haptics.

Super-light, easy-to-wear head lamp

At 69g, the ANSMANN HD250RS is a real flyweight and so is very comfortable to wear even for long periods of time.

Universal head band

The elastic head band is flexible and universally adjustable. A secure hold on any head.

Optimum lighting thanks to high-efficiency reflector system.

For maximum light output, the LED is surrounded by an optical reflector system that optimally concentrates the light to ensure a long range. This results in very good and homogeneous illumination. The COB LED provides excellent light intensity for close-quarters work. This mode is ideally suited for inspection tasks or similar work due to the wide and very homogeneous illumination.

Powerful rechargeable battery pack

With a voltage of 3.7V and a capacity of 1200mAh, the integrated Li-Po rechargeable battery pack provides a battery life of max. 9 hours. The lamp can be charged by any conventional USB power source via the USB type-C cable provided.

Adjustable lamp head

The lamp head can be adjusted up to 45°, guaranteeing optimum illumination in any situation.

Different light modes – simple operation thanks to sensor technology

The head lamp has two ergonomic pushbuttons, which are easy to operate, even when the lamp is being worn. The lamp is likewise easy to operate whilst wearing gloves. The lamp has the following switch options:

Button 1: Brightness levels

100% COB LED & Cree LED, 100% Cree LED, 100% COB LED, 30% COB LED

Button 2: Sensor function

The sensor technology can be switched on or off with this switch. The lamp can be switched on and off with simple gesture control at a distance of ca. 10cm in front of the lamp. The various levels can be selected via button 1 in sensor mode. The intelligent controller remembers the last brightness level to be set with button 1 and thus always lights up using the desired, earmarked mode.

Protection class IP54

With its IP54 protection rating, the head lamp is protected from dust and splashed water ingress and so is ideal for outdoor use.

Instructions for use

This lamp is designed for mobile use, the included LED lamp is not replaceable and not suitable for household room illumination.

More Information
Illuminant LED
Light range 51 m
Luminous flux 250 Lumen
Brightness 2.600 Lux
Protection class IP54
Power supply Li-Po Akku 3.7V 1200mAh
Color black
Packaging blister packaging
Storage temperature -20 - 60 °C
Operating temperature -20 - 25 °C
Housing material ABS

Performance data

ModeLight rangeLuminous fluxBrightnessOperating time
Main / additional lamp 100%49 m250 lumens2.400 Lux4 h
Main lamp 100%51 m140 lumens2.600 Lux9 h
Additional lamp 100%16 m150 lumens250 Lux6 h
Additional lamp 30%9 m45 lumens80 Lux8 h
HD250RS, USB type-C charging cable, operating instructions
