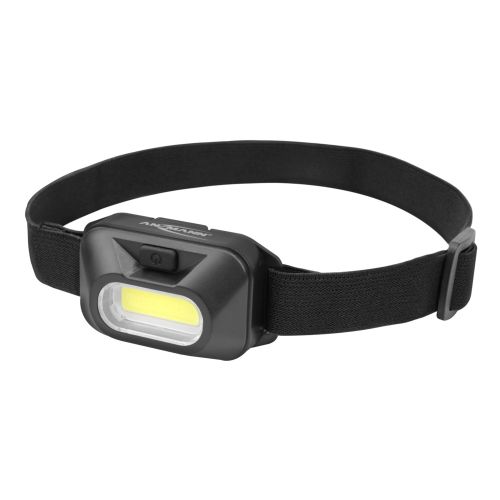

HD120B

Head lamp with COB LED

Please login to see price

More Information
Part number 1600-0357
EAN code 4013674167364
Product content HD120B, 3× AAA batteries, operating instructions
Packaging unit pieces 12 Stück
Product weight 0.068 kg
Dimensions 7.4 × 4.2 × 2.1 cm
Warranty 2 years

Bright, easy-to-wear head lamp

Head lamps are not only well loved by joggers and cyclists, but also in industry, by rescue services, mountaineers, technicians, anglers, tradespeople and campers: Both hands remain free and the light is always at just the right spot! The ABS plastic housing ensures the required level of robustness and pleasant haptics.

Optimum lighting thanks to high-efficiency reflector system.

For maximum light output, the LED is surrounded by an optical reflector system that optimally concentrates the light to ensure a long range. The two auxiliary LEDs provide a pleasant light for close range activities.

Head lamp made from robust ABS plastic with COB LED

A super-bright 1W LED COB LED provides optimum illumination. The light is widely spread and so offers an ideal field of light for close range tasks. In addition, the light also offers a 30% mode, which provides metered lighting, for example for reading.

A flexible and adjustable head band ensures a secure hold on any head.

Super-light, easy-to-wear head lamp

At 49g (incl. the supplied battery) the ANSMANN HD120B is a real flyweight and so is very comfortable to wear even for long periods of time.

Instructions for use

This lamp is designed for mobile use, the included LED lamp is not replaceable and not suitable for household room illumination.

More Information
Illuminant LED
Illuminant power 1 W
Light range 14 m
Luminous flux 125 Lumen
Brightness 52 Lux
Protection class IPX2
Operating time 15 h
Light modes

100% / 30%

Power supply 3× Micro AAA / LR03
Color black
Packaging cardboard box
Storage temperature -10 - 50 °C
Operating temperature -10 - 25 °C
Housing material ABS plastic

Performance data

ModeLight rangeLuminous fluxBrightnessOperating time
100%14 m125 lumens52 Lux4,7 h
30%8 m37 lumens17 Lux15 h
Strobe14 m125 lumens52 Lux
HD120B, 3× AAA batteries, operating instructions
