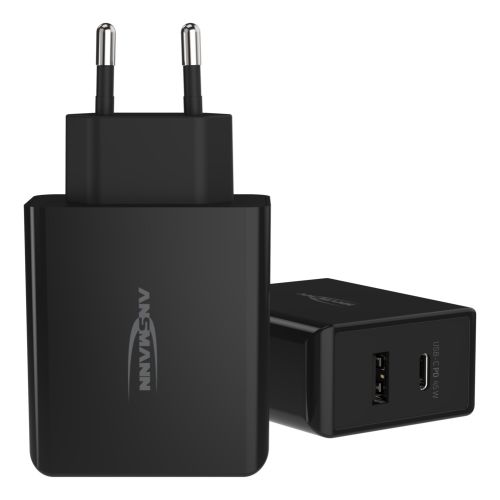

Home Charger 245PD
Intelligent USB-PD charger 45 W for laptops, smartphones, tablets and other USB devices
| Part number | 1001-0095 |
|---|---|
| EAN code | 4013674161652 |
| Product content | Home Charger 245PD, manual |
| Packaging unit pieces | 48 Stück |
| Product weight | 0.14 kg |
| Dimensions | 10.3 × 6.6 × 2.9 cm |
| Warranty | 3 years |
USB PD charger from ANSMANN with GAN technology with 2 USB ports and a power of max. 45 W. The ideal charging solution for demanding applications, such as ultra-fast charging and powering of compatible laptops or powerbanks. Backwards compatible with all USB charging applications.
Thanks to the new GAN technology, the charger can be made much more compact and thus fits easily into any pocket. The intelligent charging control and Multisafe technology optimises and safeguards your use. Very low stand-by consumption makes this charger not only efficient, but also economical.
| Input voltage | 110 - 240V AC |
|---|---|
| Max. input current | 1 A |
| AC frequency | 60Hz / 50Hz |
| Port | USB type C, USB-A |
| Output voltage | 5 - 20V DC |
| Max. output current | 3 A |
| Maximum power | 45 W |
| Functions | Overcurrent protection, Overvoltage protection, Short circuit protection, Temperature control |
| Charging protocol | USB, Power Delivery Profile 3 |
| USB-Ports | 2 |
| Average operational efficiency | 80,9 % |
| Efficiency at low load | 73,5 % |
| Power consumption at no load | 0,290 W |
| Color | black |
| Packaging | cardboard box |
| Storage temperature | -25 - 70 °C |
| Operating temperature | -20 - 35 °C |
Charging currents
| Mode | Voltage range | Max. current | Max. power |
|---|---|---|---|
| USB-C | 5,0 V DC | 3,0 A | 15,0 W |
| USB-C | 9,0 V DC | 3,0 A | 27,0 W |
| USB-C | 12,0 V DC | 3,0 A | 36,0 W |
| USB-C | 15,0 V DC | 3,0 A | 45,0 W |
| USB-C | 20,0 V DC | 2,3 A | 45,0 W |
| USB-A | 5,0 V DC | 2,4 A | 12,0 W |
| USB-A + USB-C: USB-C | 5,0 V DC | 3,0 A | 15,0 W |
| USB-A + USB-C: USB-C | 9,0 V DC | 3,0 A | 27,0 W |
| USB-A + USB-C: USB-C | 12,0 V DC | 2,5 A | 30,0 W |
| USB-A + USB-C: USB-C | 15,0 V DC | 2,0 A | 30,0 W |
| USB-A + USB-C: USB-C | 20,0 V DC | 1,5 A | 30,0 W |
| USB-A + USB-C: USB-A | 5,0 V DC | 2,4 A | 12,0 W |
| PPS | 5,9 - 11 V DC | 3,0 A | 33,0 W |
