Home Charger HC118QC, manual

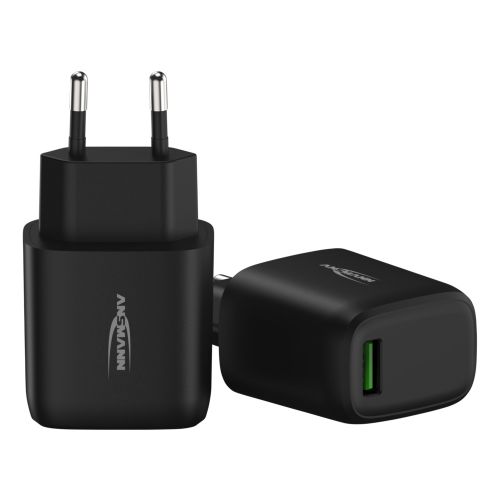

Home Charger HC118QC
Intelligent QC3.0 USB charger 18 W for smartphones, tablets and other USB devices
| Part number | 1001-0099 |
|---|---|
| EAN code | 4013674162864 |
| Product content | Home Charger HC118QC, manual |
| Packaging unit pieces | 48 Stück |
| Product weight | 0.056 kg |
| Dimensions | 8 × 4.3 × 3.1 cm |
With one USB port and a power rating of 18 W, the USB charger from ANSMANN offers the ideal charging solution for your application. Your device is optimised and safely charged thanks to the intelligent charge control and Multisafe technology. Very low stand-by consumption makes this charger not only efficient, but also economical.
Quick-Charge 3.0 compatible
Quick and efficient charging technology for charging compatible devices to 80% in 35 mins. The device is backwards compatible with Quick-Charge technology 1.0, 2.0 & 3.0 and so offers the highest level of reliability.
| Input voltage | 100 - 240V AC |
|---|---|
| Max. input current | 0.5 A |
| AC frequency | 60 / 50 |
| Port | USB-A |
| Output voltage | 5V DC |
| Max. output current | 3 A |
| Maximum power | 18 W |
| Kompatibilität | Quickcharge 3.0 |
| Functions | Overcurrent protection, Short circuit protection |
| Charging protocol | Quick Charge 3.0 |
| USB-Ports | 1 |
| Average operational efficiency | 81,4 % |
| Efficiency at low load | 77,0 % |
| Power consumption at no load | 0,090 W |
| Color | black |
| Packaging | cardboard box |
| Storage temperature | -25 - 75 °C |
| Operating temperature | -20 - 35 °C |
Charging currents
| Mode | Voltage | Max. current | Max. power |
|---|---|---|---|
| USB-A QC | 5,0 V | 3,0 A | 15,0 W |
| USB-A QC | 9,0 V | 2,0 A | 18,0 W |
| USB-A QC | 12,0 V | 1,5 A | 18,0 W |
