FL150W-AC, operating instructions
FL150W-AC

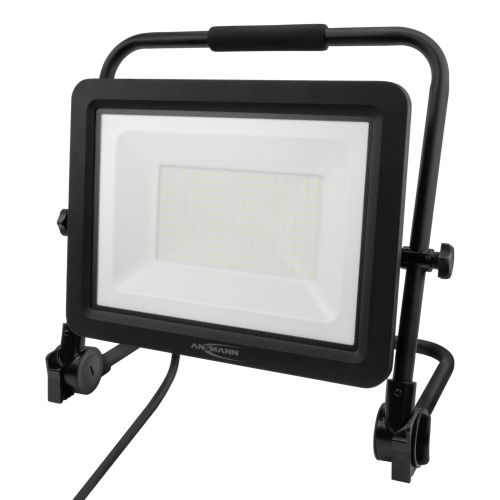

150 W ANSMANN Luminary LED spotlight with integrated 1.8m cable and CEE 7/7 ("Schuko") plug for professional use – robust and very bright
| Part number | 1600-0629 |
|---|---|
| EAN code | 4013674201792 |
| Product content | FL150W-AC, operating instructions |
| Packaging unit pieces | 3 Stück |
| Product weight | 3.859 kg |
| Dimensions | 39.4 × 28.2 × 37.5 cm |
| Warranty | 10 years |
Your project, your passion, your light
ANSMANN stands for quality and reliability! We have set ourselves the goal of providing high quality products for professionals and hobby craftspeople. Our FL150W-AC is a professional spotlight with SMD LED technology. The reliable ANSMANN Luminary lamp integrates itself seamlessly into challenging everyday use, for work in and around the home, e.g. in workshops, construction sites, industry, household, garden, yard or garage.
High performance lighting power
The lamp creates an intense, bright light through the use of high-performance SMD LED technology. This provides a brightness level of up to 18.000 Lumen. Thanks to the wide beam angle, the bright light is uniformly distributed so that both large surfaces and the smallest of details can be homogeneously illuminated. The light from the LEDs has a colour temperature of ca. 5000K, which does not overly strain the eyes. This means a pleasant natural white light that enables comfortable working without causing fatigue.
Robust, impact resistant and splash-proof
The robust and impact resistant housing is particularly resistant to mechanical stresses. Thanks to the IP65 protection rating, the light is fully protected against foreign objects (dust), contact and splashed water from any angle. As a result, you can concentrate fully on your work with ideal illumination in indoor and outdoor areas.
Impressive technical values
The FL150W-AC is operated with the help of the integrated, 180 cm long cable. The H05RN-F rubber cable is flexible and ideally suited for use outdoors as well as on construction sites. Its characteristics enable it to withstand moderate mechanical stresses and it can likewise be used on damp or wet ground. Whether on the road or at home, with the FL150W-AC you always have the best spotlight to shed some light in the dark!
Ready to use immediately
The SMD LEDs require less than 1 second start-up time to reach full power. So, the light delivers full power immediately.
| Input voltage | 230V AC |
|---|---|
| Power consumption at no load | 0,000 W |
| Energy efficiency class | E |
| Cable length | 180 cm |
| Illuminant | LED |
| Illuminant power | 150 W |
| Lamp life | < 30.000 h |
| Luminous flux | 18.000 Lumen |
| Colour temperature | 5000 K |
| Farbwiedergabeindex (CRI) | RA >80 |
| Start-up time 0-60% | 0,3 s |
| IK Protection Class | IK07 |
| Protection class | IP65 |
| Adjustment angle | 360° |
| Mounting height | max. 2,99 |
| Horizontal beam angle | 110 ° |
| Color | black |
| Packaging | cardboard box |
| Storage temperature | -25 - 80 °C |
| Operating temperature | -20 - 40 °C |
| Housing material | Aluminium |
