Desktop Charger DC465PD, Velcro strap, operating instructions

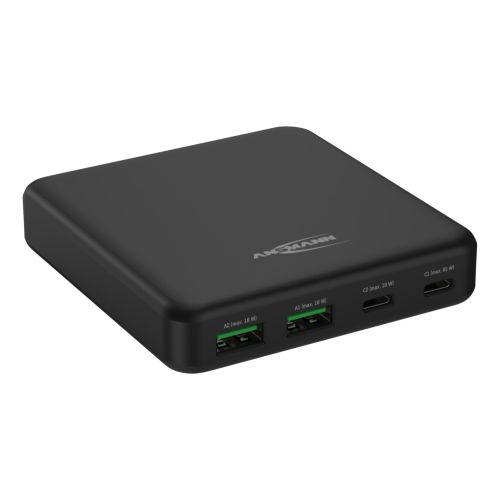

Desktop Charger DC465PD
Compact USB charging solution for the desktop. 65 W USB mains adapter for laptops, smartphones, tablets and other USB devices.
| Part number | 1001-0141 |
|---|---|
| EAN code | 4013674196074 |
| Product content | Desktop Charger DC465PD, Velcro strap, operating instructions |
| Packaging unit pieces | 5 Stück |
| Product weight | 0.258 kg |
| Dimensions | 6.5 × 6.5 × 5.5 cm |
| Warranty | 3 years |
With 4 USB-Ports and a power rating of 65 W, the desktop charger from ANSMANN offers the ideal charging solution for your workplace in the office or at home. Despite the flat design, the USB power supply impresses with excellent performance.
Laptops can be operated with a maximum of 65 Watts at the USB-C1 port. The second USB-C port and the two USB-A ports each have a fast-charging power of 18 W for further applications.
Your device is optimised and safely charged thanks to the intelligent charge control and Multisafe technology. Very low stand-by consumption makes this charger not only efficient, but also economical. The supply cable has a length of 150 cm and so is long enough for connection under the desk. The desktop charger does not require any additional ballast at the socket and so can be plugged in behind furniture to save space.
An enclosed, self-adhesive Velcro strip enables convenient attachment to all smooth surfaces (e.g. under the desk top). Thanks to the flexible Velcro fastening, the device remains transportable and is also a reliable, space-saving companion when travelling.
| Input voltage | 110 - 240V AC |
|---|---|
| Max. input current | 1.5 A |
| AC frequency | 50 / 60 |
| Port | USB type C, USB-A |
| Output voltage | 5 - 20V DC |
| Max. output current | 3,25 A |
| Maximum power | 65 W |
| Functions | Overcurrent protection, Overvoltage protection, Short circuit protection, Temperature control |
| Charging protocol | Quick Charge 3.0, Power Delivery Profile 3 |
| USB-Ports | 4 |
| Average operational efficiency | 83,7 % |
| Efficiency at low load | 73,9 % |
| Power consumption at no load | 0,200 W |
| Color | black |
| Packaging | cardboard box |
| Storage temperature | -25 - 75 °C |
| Operating temperature | -20 - 25 °C |
Charging currents
| Mode | Voltage | Max. current | Max. power |
|---|---|---|---|
| USB-C1 | 5,0 V | 3,0 A | 15,0 W |
| USB-C1 | 9,0 V | 3,0 A | 27,0 W |
| USB-C1 | 12,0 V | 3,0 A | 36,0 W |
| USB-C1 | 15,0 V | 3,0 A | 45,0 W |
| USB-C1 | 20,0 V | 3,3 A | 65,0 W |
| USB-C2 | 5,0 V | 3,0 A | 15,0 W |
| USB-C2 | 9,0 V | 2,0 A | 18,0 W |
| USB-C2 | 12,0 V | 1,5 A | 18,0 W |
| USB-A1 | 5,0 V | 3,0 A | 15,0 W |
| USB-A1 | 9,0 V | 2,0 A | 18,0 W |
| USB-A1 | 12,0 V | 1,5 A | 18,0 W |
| USB-A2 | 5,0 V | 3,0 A | 15,0 W |
| USB-A2 | 9,0 V | 2,0 A | 18,0 W |
| USB-A2 | 12,0 V | 1,5 A | 18,0 W |
| USB-C1 & C2: C1 | 5,0 V | 3,0 A | 15,0 W |
| USB-C1 & C2: C1 | 9,0 V | 3,0 A | 27,0 W |
| USB-C1 & C2: C1 | 12,0 V | 2,5 A | 30,0 W |
| USB-C1 & C2: C1 | 15,0 V | 2,0 A | 30,0 W |
| USB-C1 & C2: C1 | 20,0 V | 1,5 A | 30,0 W |
| USB-C1 & C2: C2 | 5,0 V | 3,0 A | 15,0 W |
| USB-C1 & C2: C2 | 9,0 V | 2,0 A | 18,0 W |
| USB-C1 & C2: C2 | 12,0 V | 1,5 A | 18,0 W |
| USB-C1 & C2 & A1/A2: C1 | 5,0 V | 3,0 A | 15,0 W |
| USB-C1 & C2 & A1/A2: C1 | 9,0 V | 3,0 A | 27,0 W |
| USB-C1 & C2 & A1/A2: C1 | 12,0 V | 2,5 A | 30,0 W |
| USB-C1 & C2 & A1/A2: C1 | 15,0 V | 2,0 A | 30,0 W |
| USB-C1 & C2 & A1/A2: C1 | 20,0 V | 1,5 A | 30,0 W |
| USB-C1 & C2 & A1/A2: C2/A1/A2 shared | 5,0 V | 3,0 A | 15,0 W |
