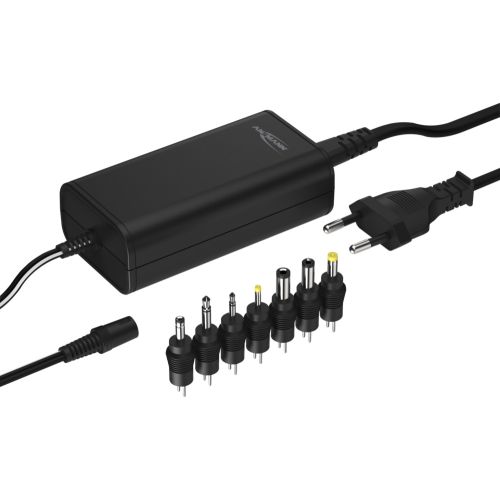

APS 2250L, EU power plug with 2m cable, 7 changeable adapters with 1.8m cable
Universal power supply APS 2250L max. 2,25 A/27 W at 5 - 15 V DC
Universal power supply 5 - 15 V DC to power many small electrical devices
| Part number | 1201-0025 |
|---|---|
| EAN code | 4013674164134 |
| Product content | APS 2250L, EU power plug with 2m cable, 7 changeable adapters with 1.8m cable |
| Packaging unit pieces | 56 Stück |
| Product weight | 0.318 kg |
| Dimensions | 8.4 × 6.4 × 19.7 cm |
| Warranty | 3 years |
5 - 15 V DC universal power supply to power many small electrical devices incl. changeable input plugs
The APS 2250L gives you the option to operate a variety of small electronic devices, such as handheld computers, digital cameras, measuring devices, MP3 players, CD players, etc. For best compatibility with many devices, a seven-part plug set is included. The usual jacks and barrel connectors contained therein ensure ideal contact. No matter which device should be operated.
The output voltage can be set through a rotary switch on the back of the power supply. The APS 2250L is short-circuit proof and voltage-stabilized. Suitable for consumers up to max. 2,25 A, 27 W.
| Input voltage | 100 - 240V AC |
|---|---|
| Voltage range | 5 - 15 V DC |
| Maximum power | 27 W |
| Functions | Polarity socket, Stabilized |
| Cable length | 360 cm |
| Average operational efficiency | 80,0 % |
| Efficiency at low load | 77,8 % |
| Power consumption at no load | 0,050 W |
| Color | black |
| Packaging | cardboard box |
| Storage temperature | -25 - 70 °C |
| Operating temperature | 0 - 25 °C |
Charging currents
| Voltage | Max. current | Max. power |
|---|---|---|
| 5,0 V | 2,3 A | 11,3 W |
| 6,0 V | 2,3 A | 13,5 W |
| 7,5 V | 2,3 A | 16,9 W |
| 9,0 V | 2,3 A | 20,3 W |
| 12,0 V | 2,3 A | 27,0 W |
| 13,5 V | 1,8 A | 24,3 W |
| 15,0 V | 1,8 A | 27,0 W |
