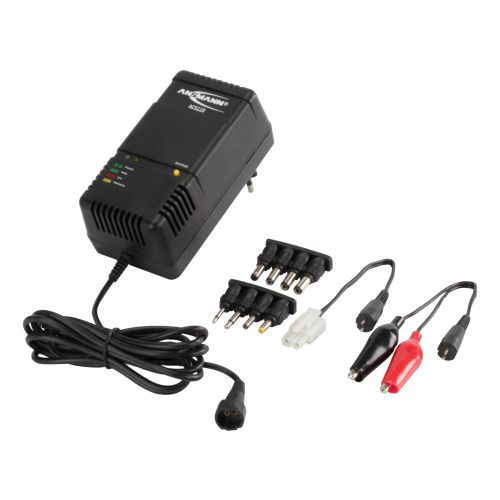

ACS 110, power cord 1,8m, 8 changeable adapters, Tamiya adapter, crocodile clamps, manual
ACS110
Plug-in charger for NiCd/NiMH battery packs with 1-10 cells (1.2-12V)
| Part number | 1001-0023 |
|---|---|
| EAN code | 4013674036448 |
| Product content | ACS 110, power cord 1,8m, 8 changeable adapters, Tamiya adapter, crocodile clamps, manual |
| Packaging unit pieces | 12 Stück |
| Product weight | 0.276 kg |
| Dimensions | 6.2 × 11.8 × 8.8 cm |
| Warranty | 3 years |
The ANSMANN charger ACS110 is designed for 1-10 cell NiMH/NiCd battery packs with a voltage of 1.2V-12.0V. The device detects automatically the amount of the cells and adjusts the charging voltage automatically. A pre-discharge of the battery pack is optional, then it switches automatically to charging (charging current: 800mA / discharge current: 150mA - 200mA). Once the battery pack is fully charged, the charging current indicator lights green permanently. The charging process is cut-off automatically (-deltaV) and switches to trickle charging. With clear LED indication you can see if the battery pack is charging (LED flashes green) or discharging (LED lights yellow) or if there is an error (LED flashes red).
Included are one adapter cable with Tamiya socket, one adapter cable with crocodile clips and 8 standard output plugs for connecting in either polarity. The charger includes short-circuit and wrong polarity protection and is made for worldwide use (100-240V AC / 50-60Hz).
| Input voltage | 100 - 240V AC |
|---|---|
| Chargeable cells | battery pack |
| Chargeable cell chemistry | Nickel-cadmium, Nickel metal hydride |
| Functions | Discharge function, Faulty cell detection, Microprocessor control, Polarity socket, Safety timer |
| Color | black |
| Packaging | cardboard box |
| Storage temperature | -25 - 70 °C |
| Operating temperature | 0 - 40 °C |
